Hardware Specification
Interface
Button
External Power Supply
Wireless Standards
Antenna
Dimensions ( W x D x H )
Antenna Beamwidth
Protection
Wireless Specification
Frequency
Signal Rate
Reception Sensitivity
Wireless Modes
Certification
System Requirements
Environment
Interface
- 1 10/100Mbps Auto-Sensing RJ45 Port (Auto MDI/MDIX, PoE)
- 1 External Reverse SMA Connector
- 1 Grounding Terminal
Button
- Reset Button
External Power Supply
- 12VDC / 1.0A
Wireless Standards
- IEEE 802.11a , IEEE 802.11n
Antenna
- 15dBi Dual-Polarized Directional Antenna
Dimensions ( W x D x H )
- 9.8 x 3.3 x 2.4 in. (250 x 85 x 60.5mm)
Antenna Beamwidth
- Horizontal: 60°
- Vertical: 14°
Protection
- 15KV ESD Protection
- 4000V Lightning Protection
- Grounding Terminal Integrated
Wireless Specification
Frequency
- 5.180-5.240GHz
- 5.745-5.825GHz
Signal Rate
- 11a: Up to 54Mbps (Dynamic)
- 11n: Up to 150Mbps (Dynamic)
Reception Sensitivity
- 802.11a 54M: -77dBm 48M: -79dBm 36M: -83dBm 24M: -86dBm 18M:-91dBm 12M: 2dBm 9M:-93dBm 6M:-94dBm
- 802.11n 150M: -73dBm 121.5M: -76dBm 108M: -77dBm 81M: -81dBm 54M:-84dBm 40.5M:-88dBm 27M:1dBm 13.5M:-93dBm
Wireless Modes
- AP Router Mode
- AP Client Router Mode (WISP Client)
- AP / Client / Bridge / Repeater Mode
- Wireless Functions WDS Bridge, Wireless Statistics
- Wireless Security
- SSID Enable/Disable
- MAC Address Filter
- 64/128/152-bit WEP Encryption
- WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
- Advanced Functions Up to 60 meters PoE is supported
- Provides 4-level signal LED indicator
Certification
- CE, FCC, RoHS

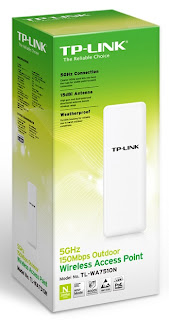

- TP-Link TL-WA7510N (Single)
- Power Supply Unit
- Power Injector
- Resource CD
- Quick Installation Guide
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment
- Operating Temperature: -30°C~70°C (-22F~158F)
- Storage Temperature: -40C~70C (-40F~158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
